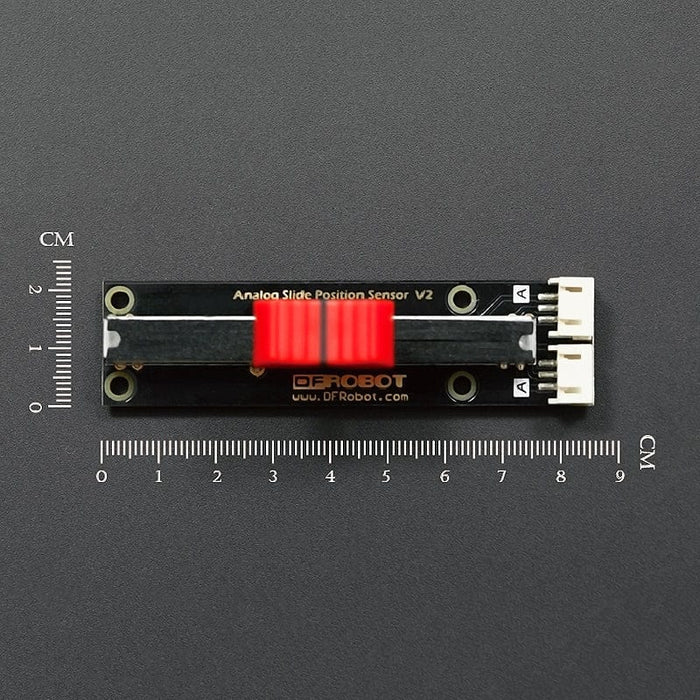

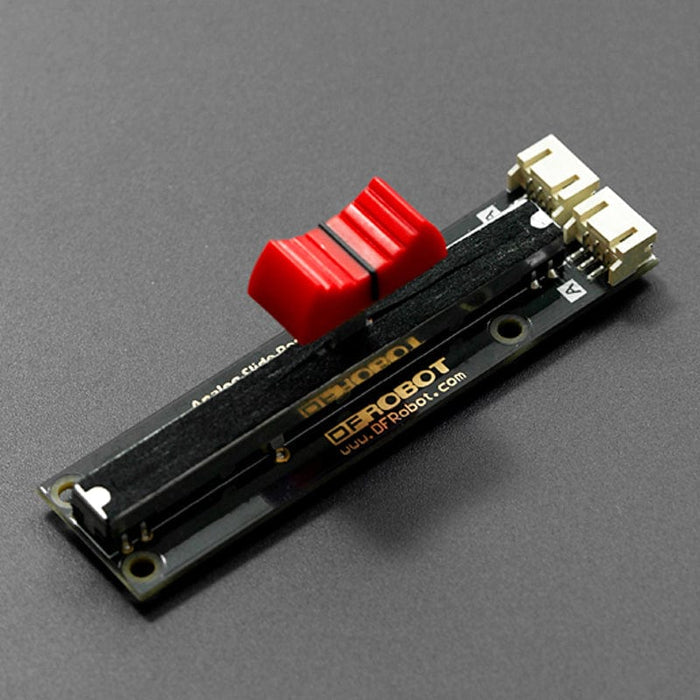

Gravity: Analog Slide Position (Potentiometer) Sensor For Arduino

This Slide Position Sensor is based on a straight-slip slide potentiometer sensor. The sensor is able to give provide the position of the slider which is often considered a linear potentiometer.

The sensor includes two analogue outputs to allow the user to average the values and minimize random sensor fluctuations.

To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play.

A slide potentiometer is commonly seen in music mixers.

Connection Example - DFRduino UNO

• Voltage: +5V

• Interface Type: Analog
• 5.4kΩ resistance value
• High quality connectors

• Product Wiki
• Schematics

• 1x Analog Slide Position (Potentiometer)
• 1x Analog Sensor Cable
